| FILTER MODEL/PARAMETER | NBC-77-SOF | VK-530 | NBC-17-SOF COMPACT | P-CAN | P-CAN COMPACT | PARTICLEMAX P3 COMPACT |
| External Approvals | EN 14387:2004+A1:2008, DIN 58621:2011 | EN 14387:2004+A1:2008, DIN 58620:2007, EN 143:2000+A1:2006 | EN 14387 +A2 | EN 14387+A1 | EN 14387+A1 | EN 14387+A1 |
| Country of Origin | Czech Republic | Italy | Czech Republic | Czech Republic | Czech Republic | Czech Republic |
| Rating | A2B2E2K2HgSX P3 D R REACTOR | A2B2E2K2HgNO20COP3R | A2B1E1K1 P3 D R | A2SXP3 D R (OC, CR, CS) | A1SXP3 D R (OC, CR, CS) | P3 R |
| Filter Thread Type | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Breathing Resistance (typical) | <140 Pa at 30 L/min | <220 Pa at 30L/min | <200 Pa at 30 L/min | <160 Pa at 30 L/min | <200 Pa at 30 L/min | 68 Pa at 30 L/min |
| Diameter | 110 mm | 106 mm | 90 mm | 110 mm | 90 mm | 88mm |
| Height | 85 mm | 111 mm | 85 mm | 75 mm | 85 mm | 42mm |
| Average weight | 335 g | 500 g | 205 g | 290 g | 205 g | 60g |
| Shelf-life in storage | 20 years | 5 years | 10 years | 10 years | 10 years | 20 years | Provides protection from: |
| Particles | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Organic gases & Vapours-boiling point > 65°C | ✅ | ✅ | ✅ | ✅ | ✅ | ❌ |
| Inorganic gases and Vapours (not CO) | ✅ | ✅ | ✅ | ❌ | ❌ | ❌ |
| Acid Gases | ✅ | ✅ | ✅ | ❌ | ❌ | ❌ |
| Ammonia and organic derivatives | ✅ | ✅ | ✅ | ❌ | ❌ | ❌ |
| Nitrogen Oxides | ❌ | ✅ | ❌ | ❌ | ❌ | ❌ |
| Carbon Monoxide | ❌ | ✅ | ❌ | ❌ | ❌ | ❌ |
| Mercury Vapours | ✅ | ✅ | ❌ | ❌ | ❌ | ❌ |
| Radioactive Iodine | ✅ | ❌ | ❌ | ❌ | ❌ | ❌ |
| Price | $59.99 | $67.49 | $37.46 | $29.96 | $28.46 | $14.96 |
| Shop Now | Shop Now | Shop Now | Shop Now | Shop Now | Shop Now |
OUR PRODUCTS ARE TRUSTED BY PROFESSIONALS ALL OVER THE GLOBE
We have established firm relationships with agencies worldwide and are deployed by:
DEPARTMENT OF DEFENSE
MINISTRY OF DEFENSE
MINISTRY OF INTERIOR
MINISTRY OF INTERIOR
MINISTRY OF INTERIOR
MINISTRY OF DEFENSE
MINISTRY OF INTERIOR
MINISTRY OF INTERIOR
MINISTRY OF INTERIOR
MINISTRY OF DEFENSE
If it doesn't fit, we will acquit
all U.S. orders

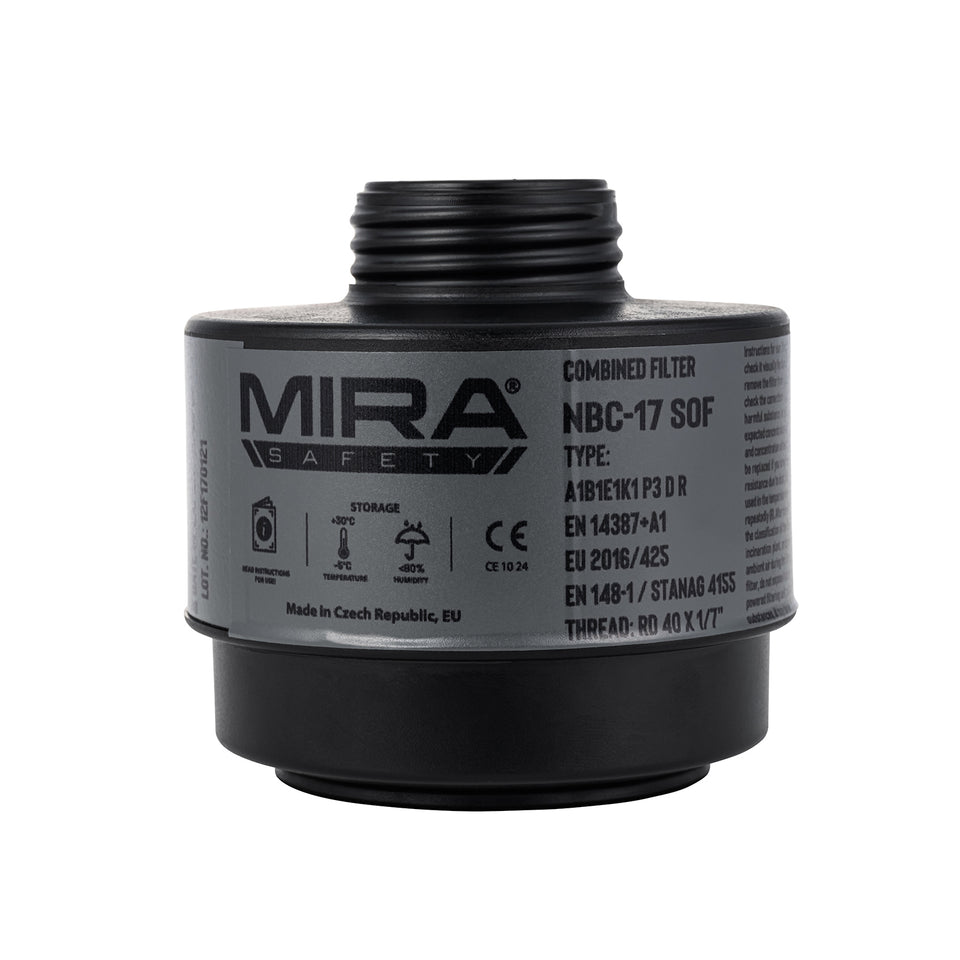

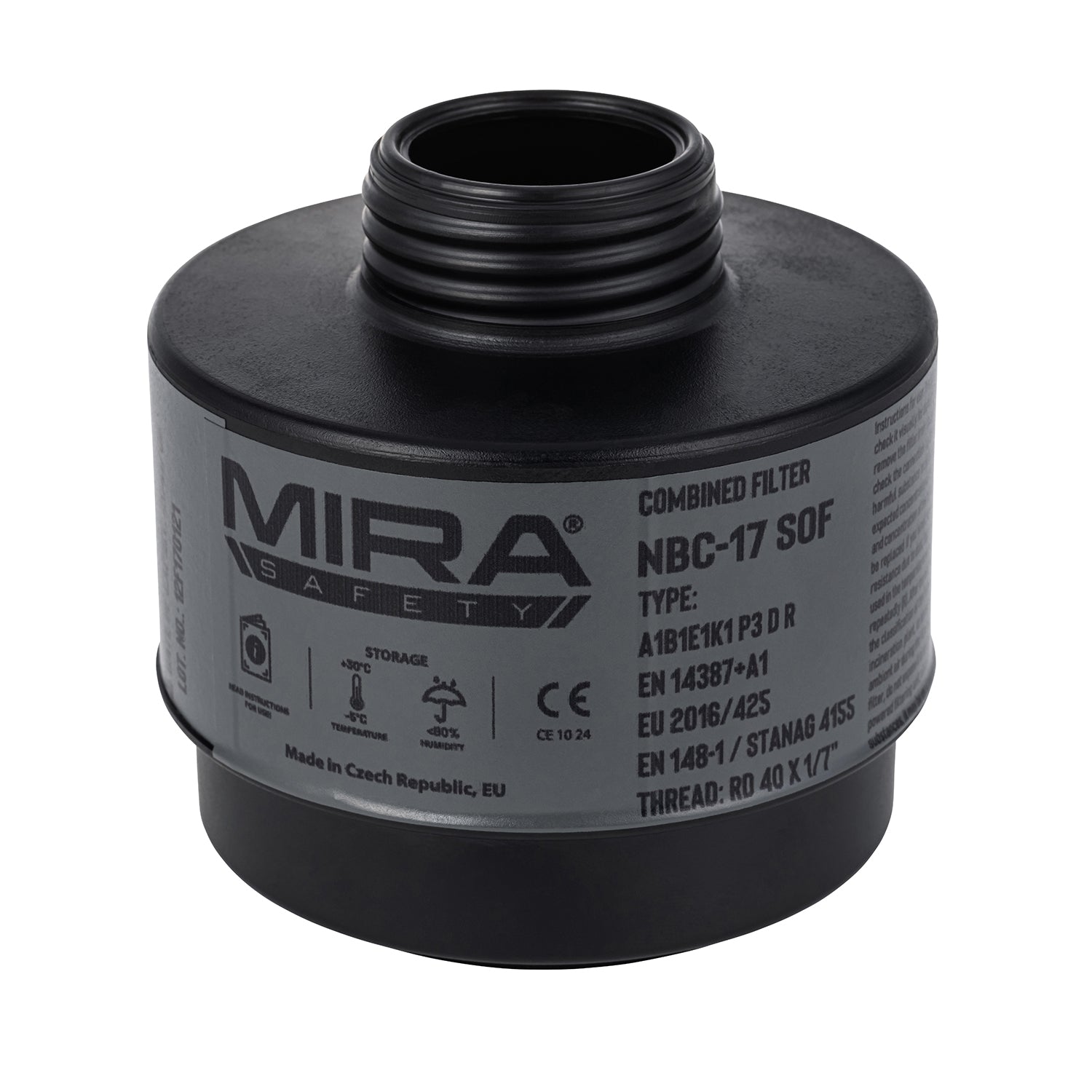

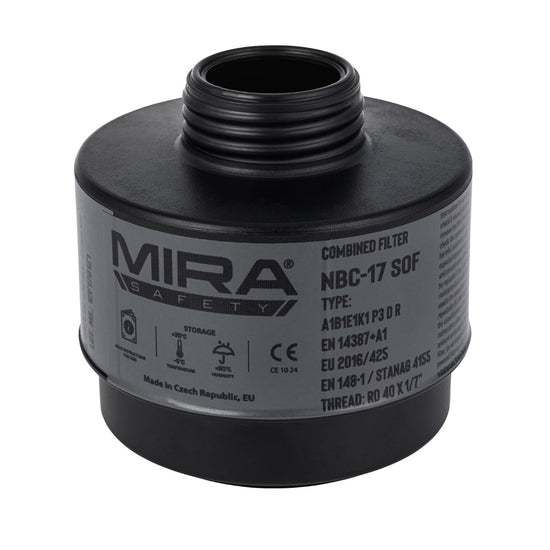

The NBC-17 SOF 40mm gas mask filter canister, in combination with a full-face mask, mouthpiece assembly, TAPR, or PAPR, reliably protects air passages against a wide range of harmful substances including CBRN agents.

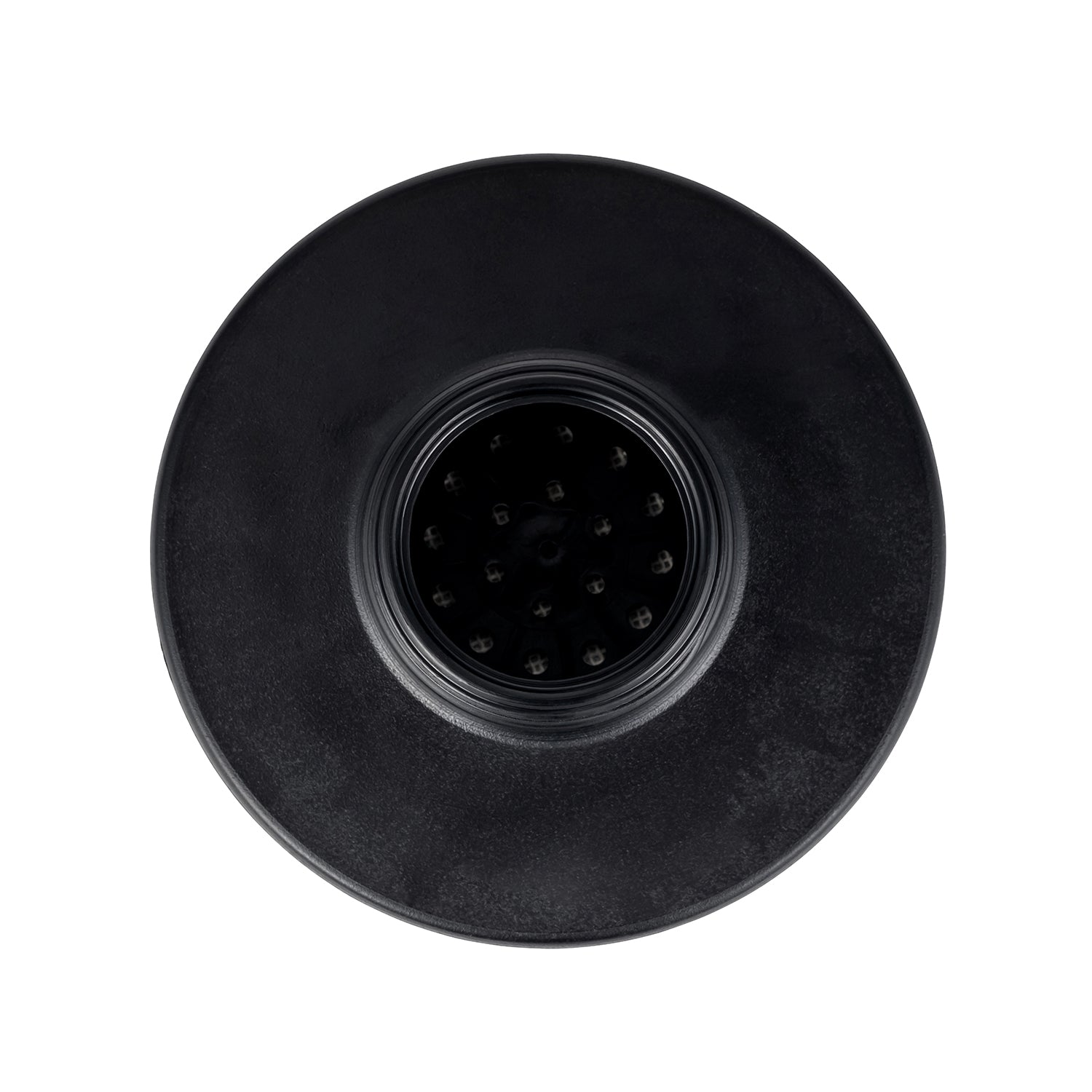

The filters are produced with standard round threads according to STANAG 4155 (EN 148- 1)- Rd 40x1/7". The filter components are made of hard plastic. This results in a very robust product that is extremely durable against shock and impact damage in operational use.
IMPORTANT NOTE: Due to the shorter threads, the NBC-17 SOF Filter is NOT compatible with the MB-90 PAPR unit.
| Technical Data | Breathing Resistance in Pa Breathing Resistance in Pa | ||
|---|---|---|---|
| Diameter | 90 mm | @ flow rate 30l/min. EN 1) NBC-17 SOF 260 <200 | @ flow rate 95l/min. EN 1) NBC-17 SOF 980 <800 |
| Height | 85 mm | ||
| Weight | 205 g ±5% | ||
| Storage time | 10 years (factory sealed) | ||
|
Type and Class Particle filter efficiency @ flow rate 95l/m |
Particle filter efficiency @ flow rate 95l/m |
|||
|
A2 - organic gases and vapors |
Sodium Chloride NaCl (S) Paraffin oil (L) |
EN 99.95 99.95 |
NBC-17 SOF >99.999 >99.999 |
|
|
B1 - inorganic gases and vapors |
P3 - particles |
|||
|
E1 - acid gases and vapors |
D- dust |
|||
|
K1 - ammonia and amines |
R- reusable |
|||
Note:
1) Standard EN 14387+A1
2) The filter was tested on dolomite dust clogging
| TESTING GAS | CONCENTRATION OF TESTING GAS | BREAKTHROUGH TIME IN MINUTES EN | NBC-17 SOF | DAC IN GRAMS NBC-17 SOF | |||
|---|---|---|---|---|---|---|---|
| PPM | MG/I | ||||||
| A2 | Cyclohexane | C₆H₁₂ | 5000 | 17.5 | 35 | 37 | 19.425 |
| B1 | Chlorine | Cl₂ | 1000 | 15 | 20 | >30 | >2.700 |
| Hydrogen Sulphide | H₂S | 1000 | 7.1 | 40 | >60 | >2.520 | |
| Hydrogen Cyanide | HCN | 1000 | 5.6 | 25 | >60 | >5.820 | |
| E1 | Sulphur Dioxide | SO₂ | 1000 | 13.3 | 20 | >30 |
>2.430 |
| K1 | Ammonia | NH₃ | 1000 | 3.5 | 40 | >60 |
>1.260 |
Breakthrough time of a gas mask filter is tested according to EN 14387+A1 at humidity 70% and flow rate 30 l/min, which is equivalent to the volume of air per minute used by an average person carrying out medium heavy work. The approximate lifetime (usage time) of a filter may, under normal conditions, calculated by comparing the concentration at the workplace and the minimum Dynamic Adsorption Capacity (DAC) for the filter.
Each NBC-17 SOF gas mask filter is sealed in a plastic bag by the manufacturer. Store the filters unopened in a clean place at even temperature, most appropriate at -5 to +30°C and relative humidity below 80%. Sealed filters tolerate also conditions of -30 to +50°C and RH below 95%. The storage period (month and year) for filters is marked on the filter label. Do not try to regenerate the filters. Never clean the filters with compressed air or compressed water.
After use, gas mask filters are considered special refuse. Make sure that they are disposed of according to the filtered substance (gases or particles) in accordance with current waste treatment regulations. If the product is to be disposed of, it should be dismantled from the respirator and disposed of as solid waste. Please see local authority regulations for disposal advice and locations.
How long can you use a filter
Filter use time depends on a few factors, including the contaminant type, concentration, breathing rate, along with atmospheric conditions. As a general rule of thumb, never reuse a filter (unless it is just a P3 filter for biological contaminants), and if you experience an increase in breathing resistance then it is probably an indicator that you should swap out the filter.
What is this filter for? Goes it filter CS, pepper spray? Difference between the NBC-77
The NBC-17 can protect from the following:
- Odor
- TICS
- Particulates
- Riot Agents
- ABEK Agents
- NBC Agents
In addition to these the NBC-77 also provides protection from:
- Mercury Vapors
- CBRN Agents
- Radioactive Iodine
